Test a certificate request, approval, and issuance

​

Initiate a certificate request through the Venafi TPP web UI

1

Log in to the Venafi TPP web UI.

2

Select Inventory > Certificates in the main menu.

3

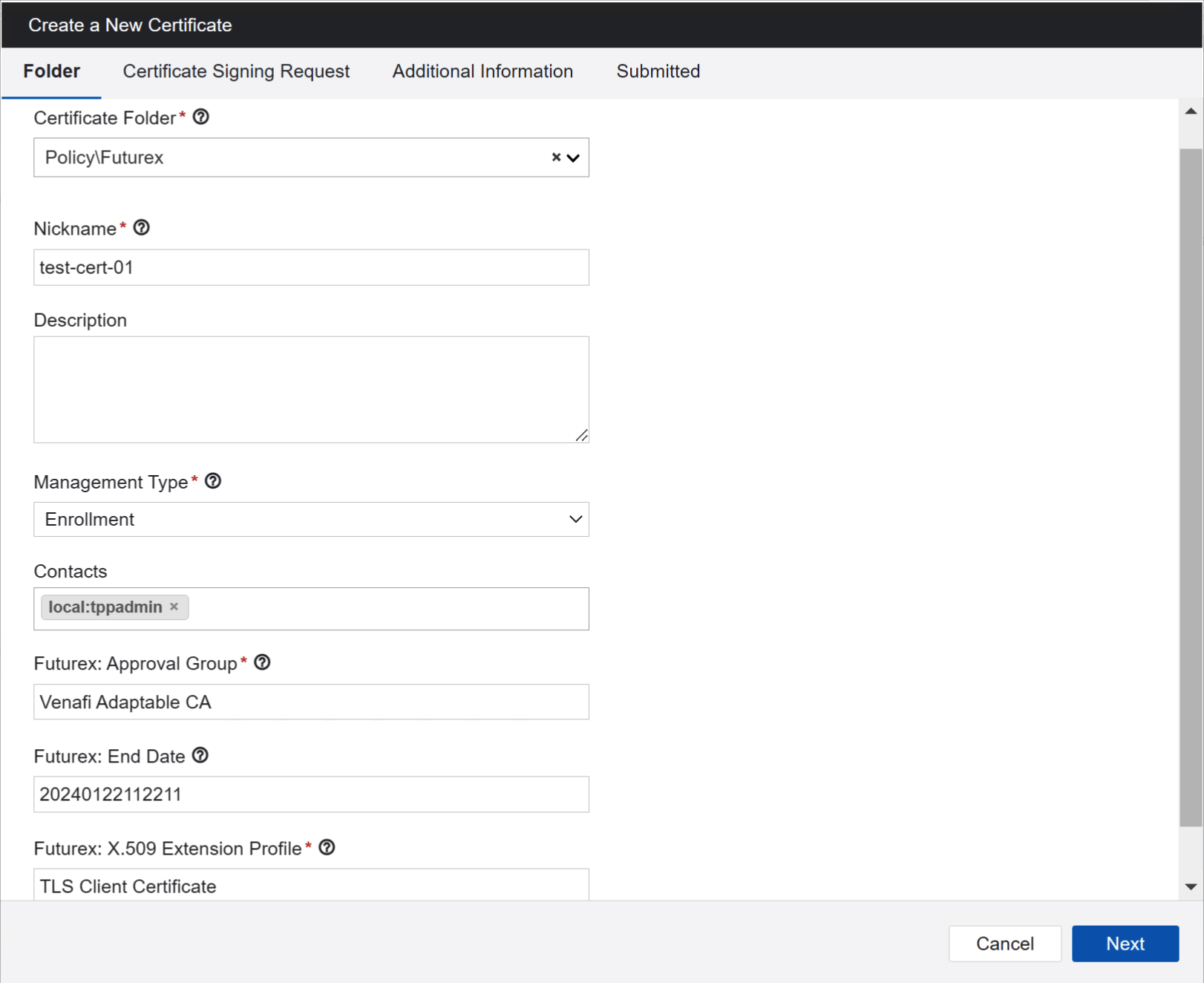

Select [ Create a New Certificate ].

4

In the Certificate Folder drop-down menu, select the certificate policy you created in the previous section, then specify the required values in the fields that populate. When finished, select [ Next ].

You must select Enrollment as the Management Type.

Multiple formats are valid for specifying the Validity Period (for example, 1 year, 1y, 2 years, 2y, 1month, 1mo, 3 weeks, 3w, 1week, 1 weeks, 10d, 10 days).

5

In the CSR Generation drop-down menu, select Generate a CSR for me, specify all desired values for the Certificate Signing Request, then select [ Next ] when finished.

6

Specify any additional information you wish to include in the request, such as Subject Alternate Names (DNS). Then, select [ Create Certificate ]. You should see a message stating the certificate request has been submitted.

The Subject Alternate Names (SANs) you specify must be in URI format.

​

Approve the certificate request in CryptoHub

1

Log in to the CryptoHub web UI with the dual-control administrator identities.

2

Go to Administrative Services > PKI Management > PKI Signing Approvals. You should see the certificate signing request inside the approval group created for the Venafi Adaptable CA service.

3

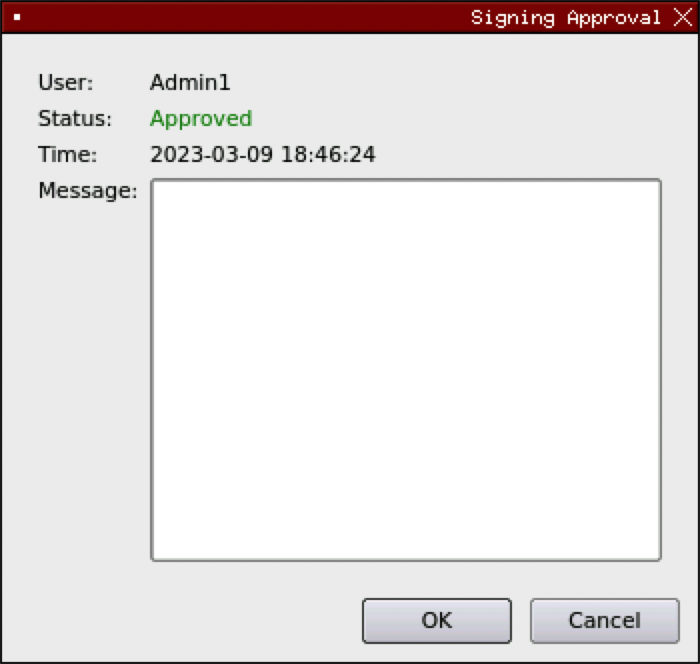

Right-click the pending certificate request and select Approve. You will see a pop-up that confirms the new status of the certificate request as Approved. Select [ OK ].

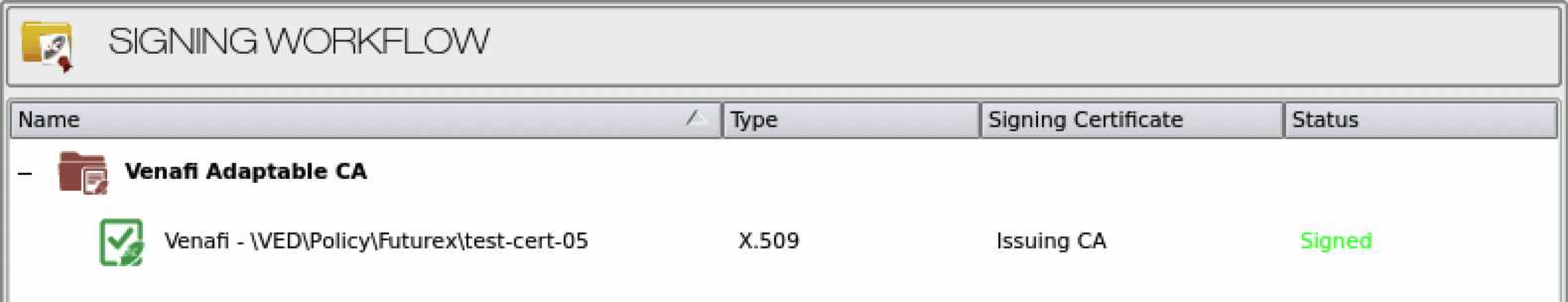

In the PKI Signing Approvals menu, the status of the certificate should show as Signed.

​

View the issued certificate in Venafi TPP

1

Log in to the Venafi TPP web UI.

2

Select Policy Tree in the main menu.

3

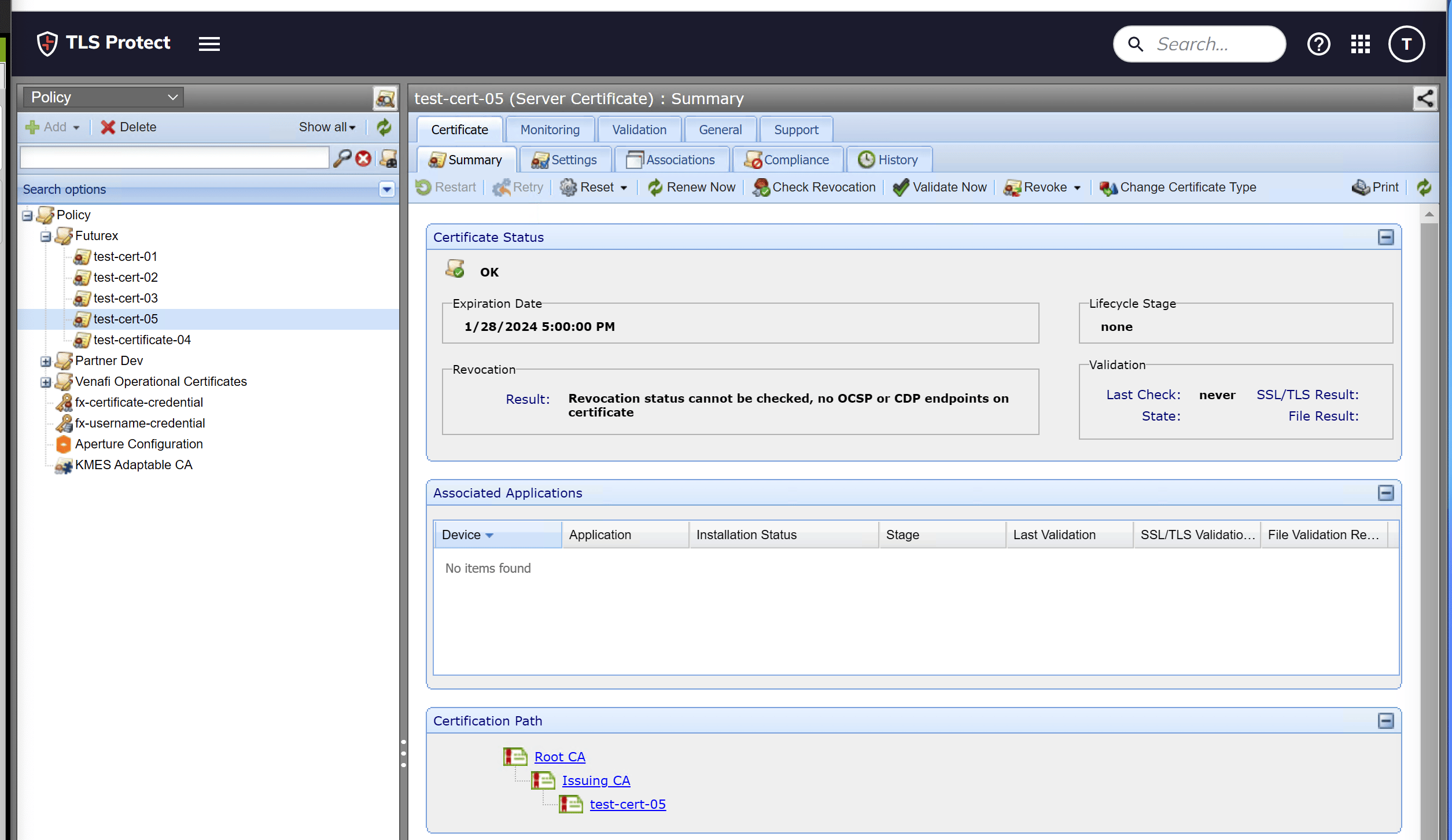

Expand the policy you created in the previous section and select the relevant certificate request. The Certificate Status should show OK.
